8. Navigating File Systems

Learning Goals

After this lesson, you should be able to:

• Describe a file system, directory, and working directory

• Write paths to files or directories

• Get or set the working directory

• Move files and directories

Due to the nature of its stripped down display, the command line interface can at times feel a bit static. But it offers much of the same functionality that modern GUIs offer, including the ability to move around your computer. With GUIs, we tend to navigate with our mouses; on the command line, we’ll use our keyboard. This chapter is intended to give you a working sense of how your files are structured.

8.1. File Systems

Your computer’s file system consists of files (chunks of data) and directories (or “folders”) to organize those files. For instance, the file system on a computer shared by Ada and Charles, two pioneers of computing, might look like this:

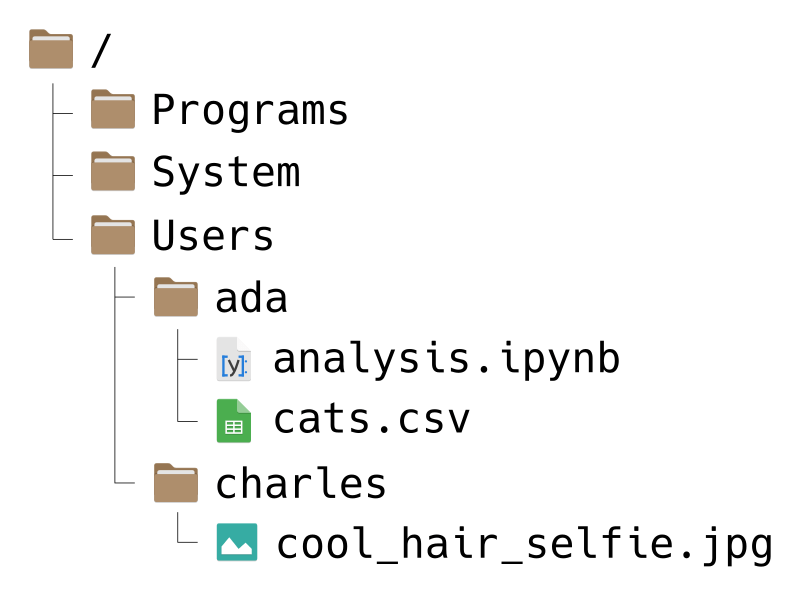

Fig. 8.1 An example of a file system.

Don’t worry if your file system looks a bit different from the picture.

File systems have a tree-like structure, with a top-level directory called the root directory. On Ada and Charles’ computer, the root is called /, which is also what it’s called on all macOS and Linux computers. On Windows, the root is usually called C:/, but sometimes other letters, like D:/, are also used depending on the computer’s hardware.

A path is a list of directories that leads to a specific file or directory on a file system (imagine giving directions to someone as they walk through the file system). Use forward slashes / to separate the directories in a path, rather than commas or spaces. The root directory includes a forward slash as part of its name, and doesn’t need an extra one.

For example, suppose Ada wants to write a path to the file cats.csv. She can write the path like this:

/Users/ada/cats.csv

You can read this path from left-to-right as, “Starting from the root directory, go to the Users directory, then from there go to the ada directory, and from there go to the file cats.csv.” Alternatively, you can read the path from right-to-left as, “The file cats.csv inside of the ada directory, which is inside of the Users directory, which is in the root directory.”

As another example, suppose Charles wants a path to the Programs directory. He can write:

/Programs/

The / at the end of this path is reminder that Programs is a directory, not a file. Charles could also write the path like this:

/Programs

This is still correct, but it’s not as obvious that Programs is a directory. In other words, when a path leads to a directory, including a trailing slash is optional, but makes the meaning of the path clearer. Paths that lead to files never have a trailing slash.

Warning

On Windows computers, the components of a path are usually separated with backslashes \ instead of forward slashes /.

Git Bash is an exception: the shell commands you’ve learned so far expect and understand paths separated with forward slashes. If you instead use Windows’ built-in terminal, you’ll need to use paths separated with backslashes (and a different set of commands).

8.1.1. Absolute & Relative Paths

A path that starts from the root directory, like all of the ones we’ve seen so far, is called an absolute path. The path is “absolute” because it unambiguously describes where a file or directory is located. The downside is that absolute paths usually don’t work well if you share your code.

For example, suppose Ada uses the path /Programs/ada/cats.csv to load the cats.csv file in her code. If she shares her code with another pioneer of computing, say Gladys, who also has a copy of cats.csv, it might not work. Even though Gladys has the file, she might not have it in a directory called ada, and might not even have a directory called ada on her computer. Because Ada used an absolute path, her code works on her own computer, but isn’t portable to others.

On the other hand, a relative path is one that doesn’t start from the root directory. The path is “relative” to an unspecified starting point, which usually depends on the context.

For instance, suppose Ada’s code is saved in the file analysis.ipynb, which is in the same directory as cats.csv on her computer. Then instead of an absolute path, she can use a relative path in her code:

cats.csv

The context is the location of analysis.ipynb, the file that contains the code. In other words, the starting point on Ada’s computer is the ada directory. On other computers, the starting point will be different, depending on where the code is stored.

Now suppose Ada sends her corrected code in analysis.ipynb to Gladys, and tells Gladys to put it in the same directory as cats.csv. Since the path cats.csv is relative, the code will still work on Gladys’ computer, as long as the two files are in the same directory. The name of that directory and its location in the file system don’t matter, and don’t have to be the same as on Ada’s computer. Gladys can put the files in a directory /Users/gladys/from_ada/ and the path (and code) will still work.

Relative paths can include directories. For example, suppose that Charles wants to write a relative path from the Users directory to a cool selfie he took. Then he can write:

charles/cool_hair_selfie.jpg

You can read this path as, “Starting from wherever you are, go to the charles directory, and from there go to the cool_hair_selfie.jpg file.” In other words, the relative path depends on the context of the code or program that uses it.

Tip

When you use paths in code, they should almost always be relative paths. This ensures that the code is portable to other computers, which is an important aspect of reproducibility. Another benefit is that relative paths tend to be shorter, making your code easier to read (and write).

When you write paths, there are three shortcuts you can use. These are most useful in relative paths, but also work in absolute paths:

• . means the current directory.

• .. means the directory above the current directory.

• ~ means the home directory. Each user has their own home directory, whose location depends on the operating system and their username. Home directories are typically found inside C:/Users/ on Windows, /Users/ on macOS, and /home/ on Linux.

As an example, suppose Ada wants to write a (relative) path from the ada directory to Charles’ cool selfie. Using these shortcuts, she can write:

../charles/cool_hair_selfie.jpg

Read this as, “Starting from wherever you are, go up one directory, then go to the charles directory, and then go to the cool_hair_selfie.jpg file.” Since /Users/ada is Ada’s home directory, she could also write the path as:

~/../charles/cool_hair_selfie.jpg

This path has the same effect, but the meaning is slightly different. You can read it as “Starting from your home directory, go up one directory, then go to the charles directory, and then go to the cool_hair_selfie.jpg file.”

The .. and ~ shortcut are frequently used and worth remembering. The . shortcut is included here in case you see it in someone else’s code. Since it means the current directory, a path like ./cats.csv is identical to cats.csv, and the latter is preferable for being simpler. There are a few specific situations where . is necessary, but they fall outside the scope of this text.

8.2. The Working Directory

Absolute & Relative Paths explained that relative paths have a starting point that depends on the context where the path is used. The working directory is the starting point the shell uses for relative paths. Think of the working directory as the directory the shell is currently “at” or watching.

The shell provides commands to manipulate the working directory. The command pwd returns the absolute path for the current working directory, as a string. It doesn’t require any arguments:

pwd

/home/nick/

On your computer, the output from pwd will likely be different. This is a very useful function for getting your bearings when you write relative paths. If you write a relative path and it doesn’t work as expected, the first thing to do is check the working directory.

The related cd function changes the working directory. It takes one argument: a path to the new working directory. Here’s an example:

cd ..
pwd

/home/

Another command that’s useful for dealing with the working directory and file system is ls. The ls command returns the names of all of the files and directories inside of a directory. It accepts a path to a directory as an argument, or assumes the working directory if you don’t pass a path. For instance:

ls /

bin   dev  etc   lib    lost+found  opt   root  sbin  swapfile  tmp  var
boot  efi  home  lib64  mnt         proc  run   srv   sys       usr  windows

ls

archive  depot  go  haven  mill  notes.md  wharf  woods  Zotero

As usual, since you have a different computer, you’re likely to see different output if you run this code. If you run ls with an invalid path, the shell emits an error:

ls /this/path/is/fake/

"/this/path/is/fake/": No such file or directory (os error 2)

8.3. Moving Data Around

Beyond helping you navigate, file paths also enable you to move information around on your computer. Doing so works very much like the above.

To move a file, we use mv, which has the following syntax:

mv [location/of/file] [location/where/you/want/to/move/the/file]

If we’re in a directory that looks like so:

ls

file.txt  subdirectory

…and we want to move file.txt into subdirectory, we can use:

mv ./file.txt ./subdirectory/file.txt

Note here that we’ve used ./ to specify that file.txt is in the current directory. Note too that we wrote out the full filename of file.txt after subdirectory. If you didn’t write out the full filename after subdirectory or use ./, your CLI is usually smart enough to infer what you meant and would move file.txt to subdirectory:

mv file.txt subdirectory
cd subdirectory
ls

file.txt

However, it’s better to be as specific as possible so as to ensure you’ve moved your file exactly where you want it. Many a file has gotten lost on computers because of inexact commands.
