18 Introduction to `ggplot2`

Learning Goals

After this lesson, you should be able to:

Install and load packages
Describe the grammar of graphics
Make a plot
Save a plot to an image file

Now that you have a solid foundation in the basic functions and data structures of R, you can move on to its most popular application: data analysis. In this chapter, you’ll learn how to efficiently explore and summarize data with visualizations and statistics. Along the way, you’ll also learn how to install packages.

18.1 Packages

A package is a collection of functions for use in R. Packages usually include documentation, and can also contain examples, vignettes, and data sets. Most packages are developed by members of the R community, so quality varies. There are also a few packages that are built into R but provide extra features. We’ll use a package in Section 18.2, so we’re learning about them now.

The Comprehensive R Archive Network, or CRAN, is the main place people publish packages. As of writing, there were 18,619 packages posted to CRAN. This number has been steadily increasing as R has grown in popularity.

Packages span a wide variety of topics and disciplines. There are packages related to statistics, social sciences, geography, genetics, physics, biology, pharmacology, economics, agriculture, and more. The best way to find packages is to search online, but the CRAN website also provides “task views” if you want to browse popular packages related to a specific discipline.

The install.packages function installs one or more packages from CRAN. Its first argument is the packages to install, as a character vector.

When you run install.packages, R will ask you to choose which mirror to download the package from. A mirror is a web server that has the same set of files as some other server. Mirrors are used to make downloads faster and to provide redundancy so that if a server stops working, files are still available somewhere else. CRAN has dozens of mirrors; you should choose one that’s geographically nearby, since that usually produces the best download speeds. If you aren’t sure which mirror to choose, you can use the 0-Cloud mirror, which attempts to automatically choose a mirror near you.

As an example, here’s the code to install the remotes package:

install.packages("remotes")

If you run the code above, you’ll be asked to select a mirror, and then see output that looks something like this:

--- Please select a CRAN mirror for use in this session ---
trying URL 'https://cloud.r-project.org/src/contrib/remotes_2.3.0.tar.gz'
Content type 'application/x-gzip' length 148405 bytes (144 KB)
==================================================
downloaded 144 KB

* installing *source* package ‘remotes’ ...
** package ‘remotes’ successfully unpacked and MD5 sums checked
** using staged installation
** R
** inst
** byte-compile and prepare package for lazy loading
** help
*** installing help indices
** building package indices
** installing vignettes
** testing if installed package can be loaded from temporary location
** testing if installed package can be loaded from final location
** testing if installed package keeps a record of temporary installation path
* DONE (remotes)

The downloaded source packages are in
        ‘/tmp/Rtmp8t6iGa/downloaded_packages’

R goes through a variety of steps to install a package, even installing other packages that the package depends on. You can tell that a package installation succeeded by the final line DONE. When a package installation fails, R prints an error message explaining the problem instead.

Once a package is installed, it stays on your computer until you remove it or remove R. This means you only need to install each package once. However, most packages are periodically updated. You can reinstall a package using install.packages the same way as above to get the latest version.

Alternatively, you can update all of the R packages you have installed at once by calling the update.packages function. Beware that this may take a long time if you have a lot of packages installed.

The function to remove packages is remove.packages. Like install.packages, this function’s first argument is the packages to remove, as a character vector.

If you want to see which packages are installed, you can use the installed.packages function. It does not require any arguments. It returns a matrix with one row for each package and columns that contain a variety of information. Here’s an example:

packages = installed.packages()
# Just print the version numbers for 10 packages.
packages[1:10, "Version"]

   askpass assertthat       base  base64enc       boot      bslib     cachem
   "1.2.1"    "0.2.1"    "4.5.2"    "0.1-3"   "1.3-32"    "0.9.0"    "1.1.0"
cellranger      class        cli
   "1.1.0"   "7.3-23"    "3.6.5"

You’ll see a different set of packages, since you have a different computer.

Before you can use the functions (or other resources) in an installed package, you must load the package with the library function. R doesn’t load packages automatically because each package you load uses memory and may conflict with other packages. Thus you should only load the packages you need for whatever it is that you want to do. When you restart R, the loaded packages are cleared and you must again load any packages you want to use.

Let’s load the remotes package we installed earlier:

library("remotes")

The library function works with or without quotes around the package name, so you may also see people write things like library(remotes). We recommend using quotes to make it unambiguous that you are not referring to a variable.

A handful of packages print out a message when loaded, but the vast majority do not. Thus you can assume the call to library was successful if nothing is printed. If something goes wrong while loading a package, R will print out an error message explaining the problem.

Finally, not all R packages are published to CRAN. GitHub is another popular place to publish R packages, especially ones that are experimental or still in development. Unlike CRAN, GitHub is a general-purpose website for publishing code written in any programming language, so it contains much more than just R packages and is not specifically R-focused.

The remotes package that we just installed and loaded provides functions to install packages from GitHub. It is generally better to install packages from CRAN when they are available there, since the versions on CRAN tend to be more stable and intended for a wide audience. However, if you want to install a package from GitHub, you can learn more about the remotes package by reading its online documentation.

18.2 Data Visualization

There are three popular systems for creating visualizations in R:

The base R functions (primarily the plot function)
The lattice package
The ggplot2 package

These three systems are not interoperable! Consequently, it’s best to choose one to use exclusively. Compared to base R, both lattice and ggplot2 are better at handling grouped data and generally require less code to create a nice-looking visualization.

The ggplot2 package is so popular that there are now knockoff packages for other data-science-oriented programming languages like Python and Julia. The package is also part of the Tidyverse, a popular collection of R packages designed to work well together. Because of these advantages, we’ll use ggplot2 for visualizations in this and all future lessons.

ggplot2 has detailed documentation and also a cheatsheet.

The “gg” in ggplot2 stands for grammar of graphics. The idea of a grammar of graphics is that visualizations can be built up in layers. In ggplot2, the three layers every plot must have are:

Data
Geometry
Aesthetics

There are also several optional layers. Here are a few:

Layer	Description
scales	Title, label, and axis value settings
facets	Side-by-side plots
guides	Axis and legend position settings
annotations	Shapes that are not mapped to data
coordinates	Coordinate systems (Cartesian, logarithmic, polar)

Let’s visualize the California least terns data set from Section 12.8 to see how the grammar of graphics works in practice. But what kind of plot should we make? It depends on what we want to know about the data set!

Suppose we want to understand the relationship between the number of breeding pairs and the total number of nests at each site, and whether this relationship is affected by climate events. One way to show the relationship between two numerical features like these is to make a scatter plot.

18.2.1 Loading ggplot2

Before we can make the plot, we need to load ggplot2. As always, if this is your first time using the package, you’ll have to install it. Then you can load the package:

# install.packages("ggplot2")
library("ggplot2")

18.2.2 Layer 1: Data

The data layer determines the data set(s) used to make the plot.

ggplot2 and most other Tidyverse packages are designed to work with tidy data, which means:

Each feature has its own column.
Each observation has its own row.
Each value has its own cell.

These rules ensure data are easy to read visually and access with indexing. The least terns data set satisfies all of these rules.

18.2.3 Layer 2: Geometry

The geometry layer determines the shape or appearance of the visual elements of the plot. In other words, the geometry layer determines what kind of plot to make: one with points, lines, boxes, or something else.

There are many different geometries available in ggplot2. The package provides a function for each geometry, always prefixed with geom_.

To add a geometry layer to the plot, choose the geom_ function you want and add it to the plot with the + operator. We’ll use geom_point, which makes a scatter plot (a plot with points):

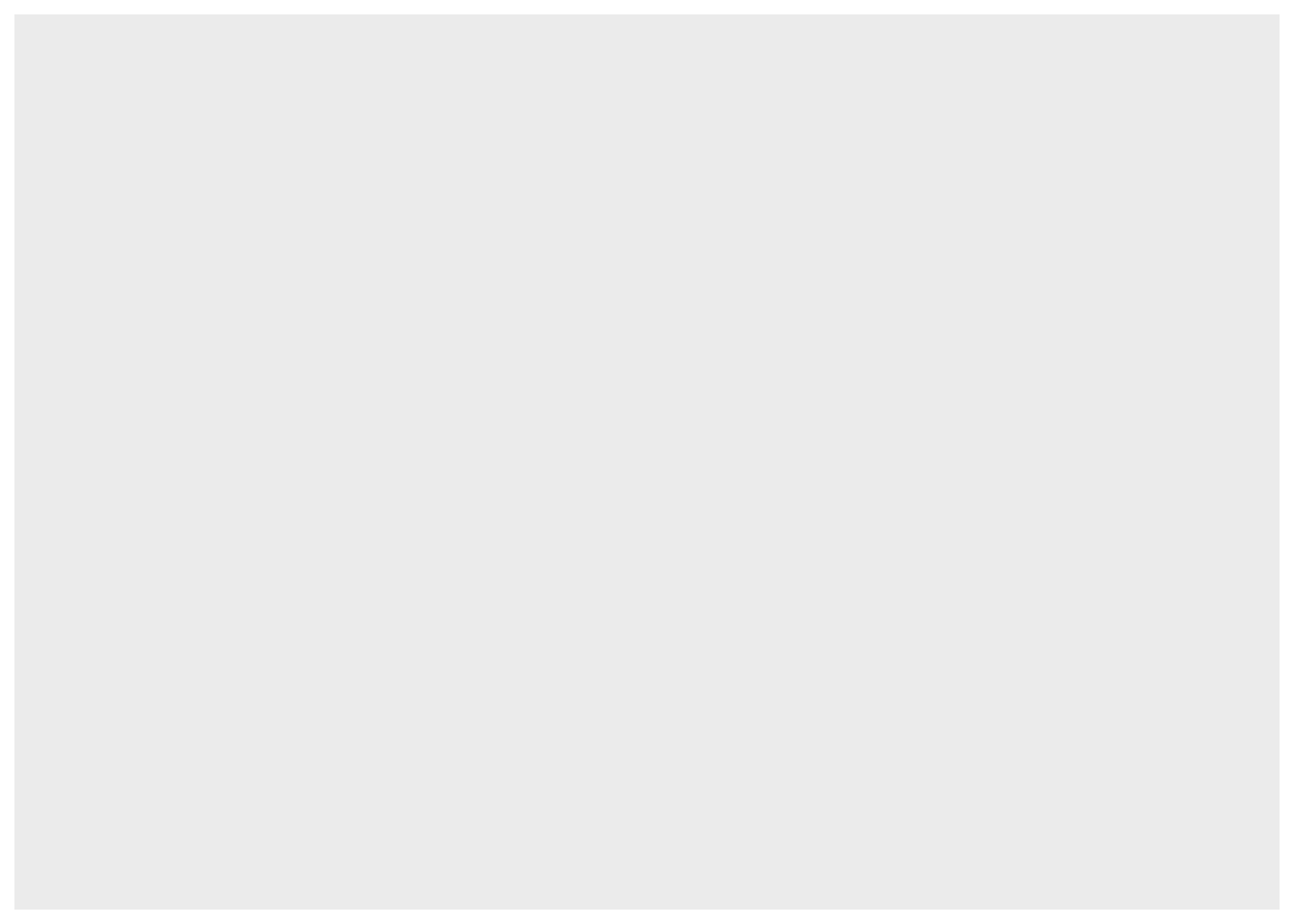

ggplot(terns) + geom_point()

Error in `geom_point()`:
! Problem while setting up geom.
ℹ Error occurred in the 1st layer.
Caused by error in `compute_geom_1()`:
! `geom_point()` requires the following missing aesthetics: x and y.

This returns an error message that we’re missing aesthetics x and y. We’ll learn more about aesthetics in the next section, but this error message is especially helpful: it tells us exactly what we’re missing. When you use a geometry you’re unfamiliar with, it can be helpful to run the code for just the data and geometry layer like this, to see exactly which aesthetics need to be set.

As we’ll see later, it’s possible to add multiple geometries to a plot.

18.2.4 Layer 3: Aesthetics

The aesthetic layer determines the relationship between the data and the geometry. Use the aesthetic layer to map features in the data to aesthetics (visual elements) of the geometry.

The aes function creates an aesthetic layer. The syntax is:

aes(AESTHETIC = FEATURE, ...)

The names of the aesthetics depend on the geometry, but some common ones are x, y, color, fill, shape, and size. There is more information about and examples of aesthetic names in the documentation.

For the scatter plot of breeding pairs against total nests, we’ll put bp_min on the x-axis and total_nests on the y-axis. Below, we set both of these aesthetics. We also enclose all of the code for the plot in parentheses () so that we can put the code for each layer on a separate line, which makes the layers easier to distinguish:

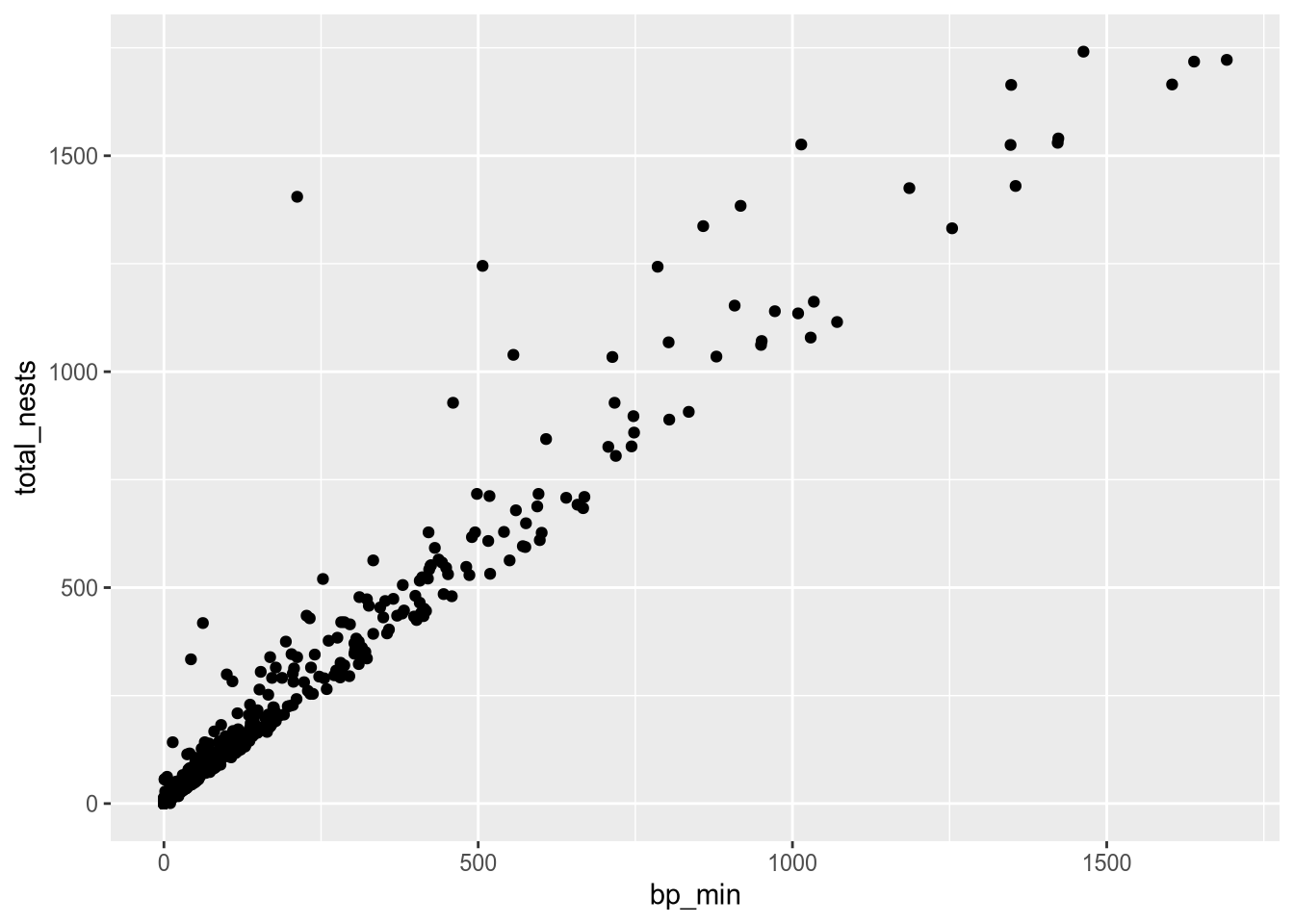

ggplot(terns) +
  aes(x = bp_min, y = total_nests) +
  geom_point()

Warning: Removed 8 rows containing missing values or values outside the scale range
(`geom_point()`).

Important

In the aes function, column names are never quoted.

Note: The Old Aesthetic Layer Syntax

In older versions of ggplot2, you must pass the aesthetic layer as the second argument of the ggplot function rather than using + to add it to the plot. This syntax is still widely used:

ggplot(terns, aes(x = bp_min, y = total_nests)) +
  geom_point()

Warning: Removed 8 rows containing missing values or values outside the scale range
(`geom_point()`).

At this point, we’ve supplied all three layers necessary to make a plot: data, geometry, and aesthetics. The plot shows what looks like a linear relationship between number of breeding pairs and total nests. To refine the plot, you can add more layers and/or set parameters on the layers you have.

Let’s add another aesthetic to the plot: we’ll make the color and shape of each point correspond to event, the climate event for each observation:

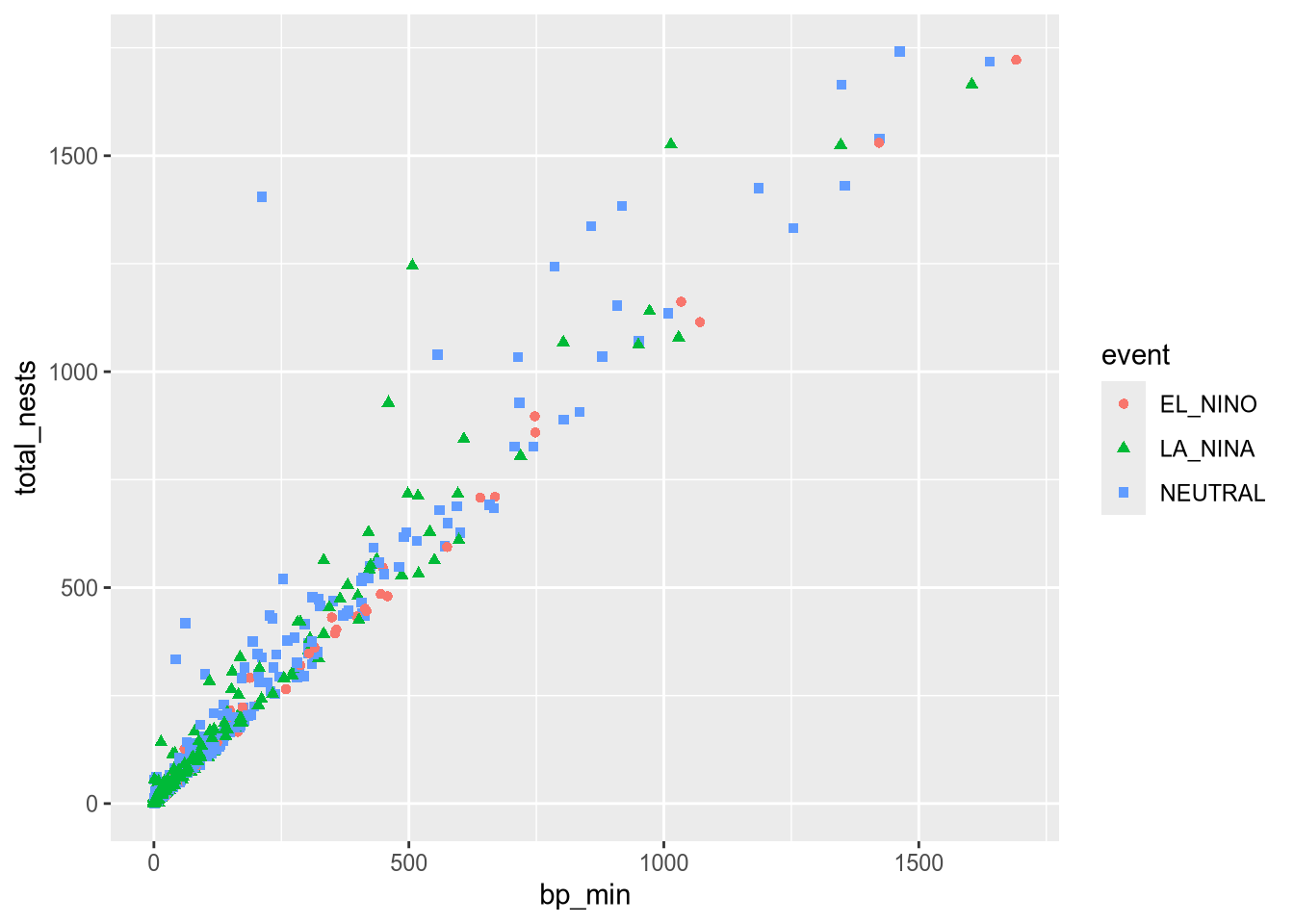

ggplot(terns) +
  aes(x = bp_min, y = total_nests, color = event, shape = event) +
  geom_point()

Warning: Removed 8 rows containing missing values or values outside the scale range
(`geom_point()`).

Using color and shape for the same feature is redundant, but ensures that the plot is accessible to colorblind people.

Additional Geometries

Each observation in the least terns data corresponds to a specific year and site. What if we label the points with their years? You can add text labels to a plot with geom_text. The required aesthetic for this geometry is label:

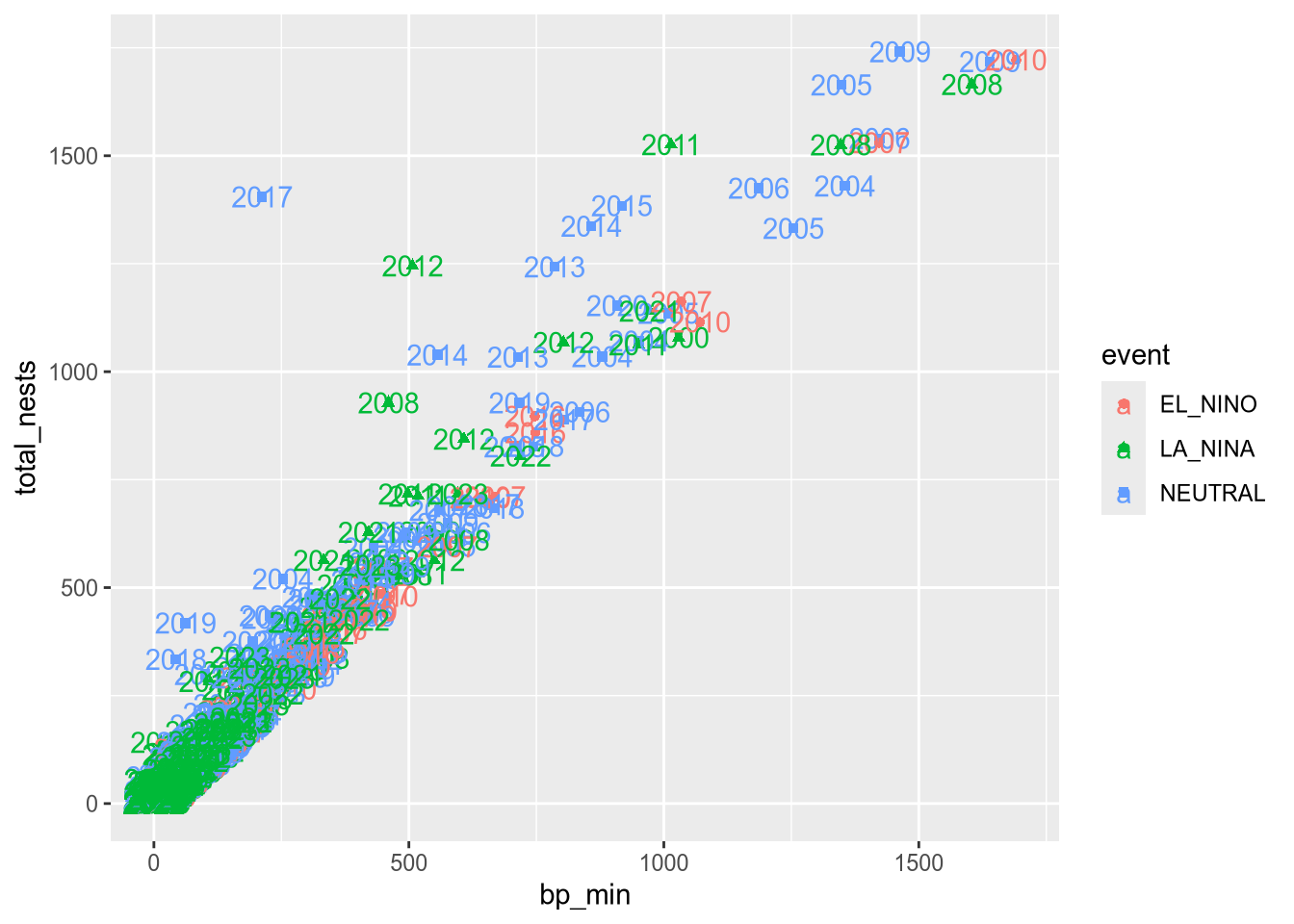

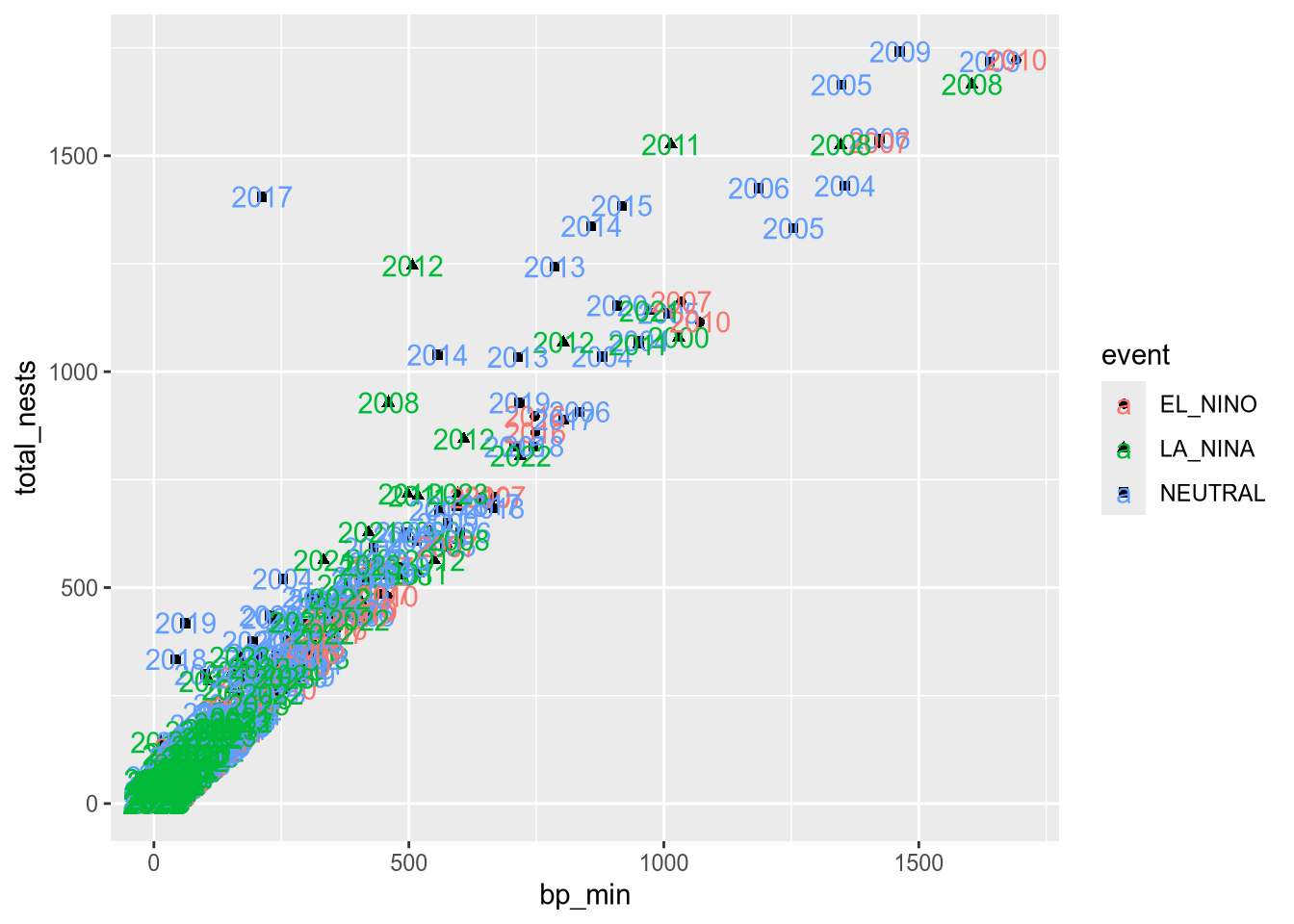

ggplot(terns) +
  aes(
    x = bp_min, y = total_nests,
    color = event, shape = event,
    label = year
  ) +
  geom_point() +
  geom_text()

Warning: Removed 8 rows containing missing values or values outside the scale range
(`geom_point()`).

Warning: Removed 8 rows containing missing values or values outside the scale range
(`geom_text()`).

The labels make the plot more difficult to read and probably would even if we made them smaller, because there are so many points on the plot. Making a high-quality visualization is typically a process of drafting and revising, similar to writing a high-quality essay. In this example, adding year labels to the plot doesn’t work well, so we’ll backtrack and leave them off of the plot. If accounting for year was critical to our research question, we could do it in other ways, such as by making separate plots for each year.

Per-geometry Aesthetics

Before we remove the labels, let’s use them to demonstrate an important point about using multiple geometry and aesthetic layers: when you add an aesthetic layer to a plot, it applies to the entire plot. You can also set an aesthetic layer for an individual geometry by passing the layer as the first argument in the geom_ function. Here’s the same plot as above, but with the color aesthetic only set for the labels:

ggplot(terns) +
  aes(
    x = bp_min, y = total_nests,
    shape = event,
    label = year
  ) +
  geom_point() +
  geom_text(aes(color = event))

Warning: Removed 8 rows containing missing values or values outside the scale range
(`geom_point()`).

Warning: Removed 8 rows containing missing values or values outside the scale range
(`geom_text()`).

Notice that the points are no longer color-coded. Where you put aesthetic layers matters.

Constant Aesthetics

If you want to set an aesthetic to a constant value, rather than one that’s data dependent, do so in the geometry layer rather than the aesthetic layer.

For instance, suppose we want to make all of the points blue and use only point shape to indicate climate events:

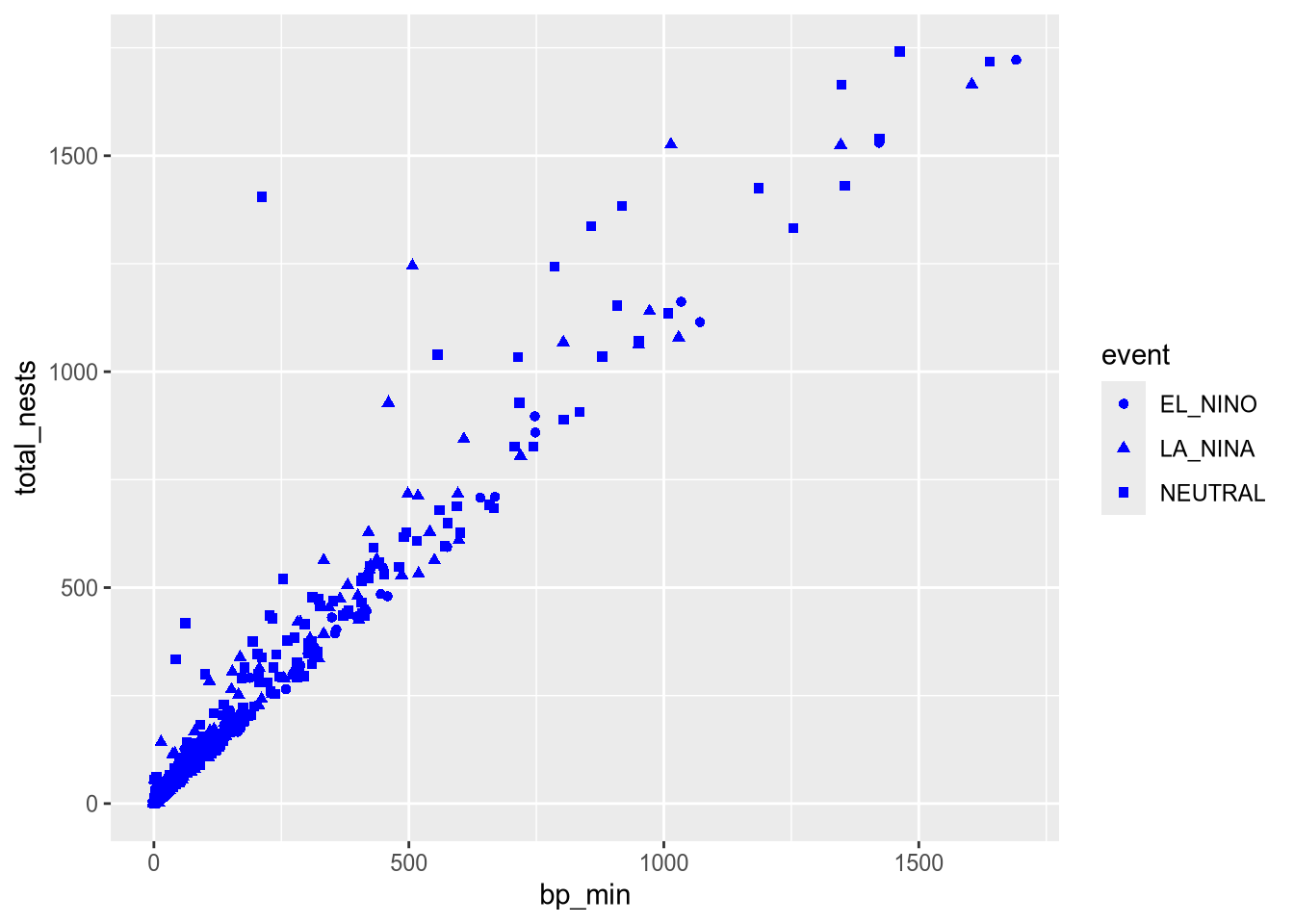

ggplot(terns) +
  aes(
    x = bp_min, y = total_nests,
    shape = event
  ) +
  geom_point(color = "blue")

Warning: Removed 8 rows containing missing values or values outside the scale range
(`geom_point()`).

If you set an aesthetic to a constant value inside of the aesthetic layer, the results you get might not be what you expect:

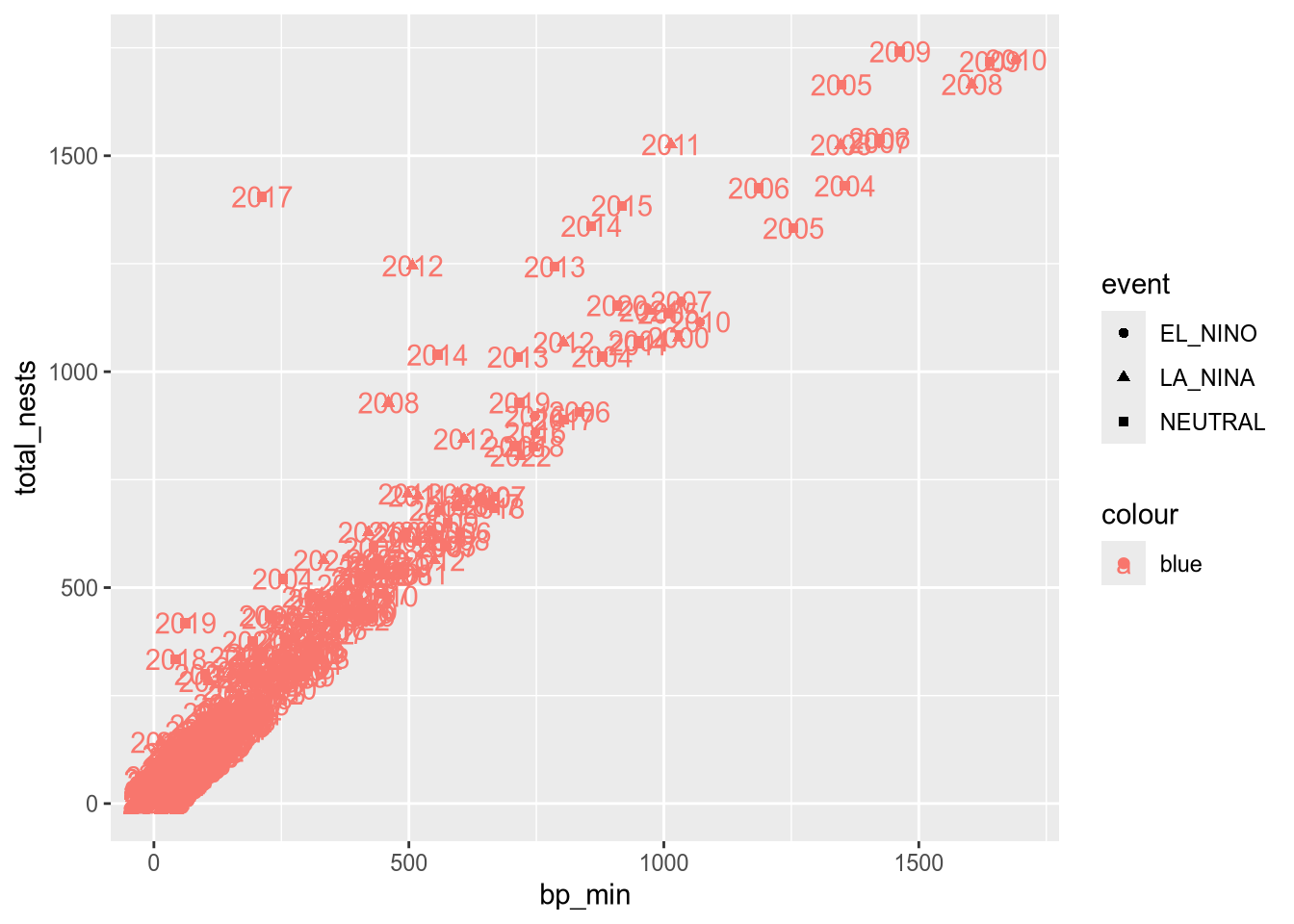

ggplot(terns) +
  aes(
    x = bp_min, y = total_nests,
    color = "blue", shape = event,
    label = year
  ) +
  geom_point() +
  geom_text()

Warning: Removed 8 rows containing missing values or values outside the scale range
(`geom_point()`).

Warning: Removed 8 rows containing missing values or values outside the scale range
(`geom_text()`).

18.2.5 Layer 4: Scales

The scales layer controls the title, axis labels, and axis scales of the plot. Most of the functions in the scales layer are prefixed with scale_, but not all of them.

The labs function is especially important, because it’s used to set the title and axis labels. Visualizations should generally have a title and axis labels, to aid the viewer:

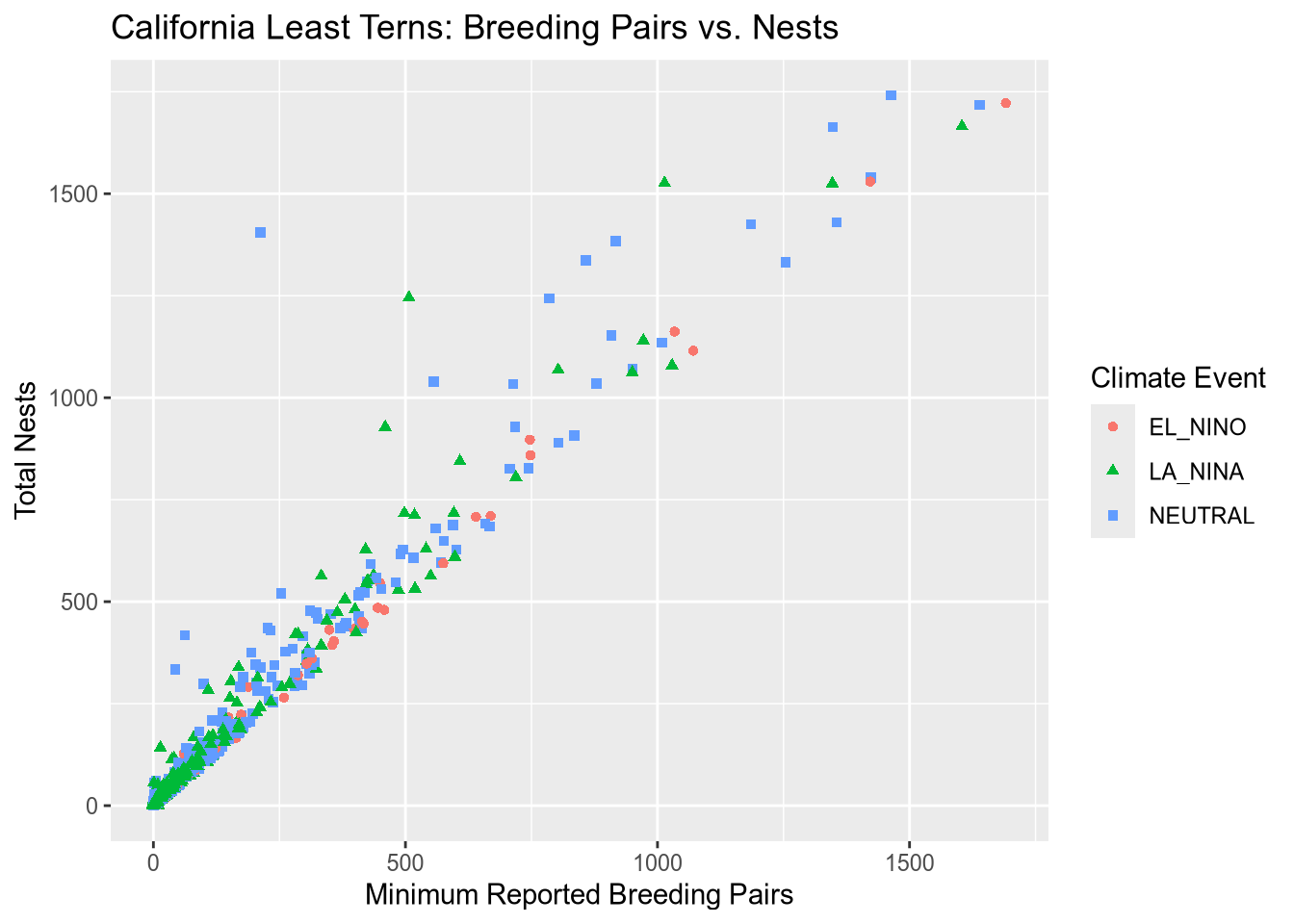

ggplot(terns) +
  aes(
    x = bp_min, y = total_nests,
    color = event, shape = event
  ) +
  geom_point() +
  labs(
    x = "Minimum Reported Breeding Pairs",
    y = "Total Nests",
    color = "Climate Event", shape = "Climate Event",
    title = "California Least Terns: Breeding Pairs vs. Nests"
  )

Warning: Removed 8 rows containing missing values or values outside the scale range
(`geom_point()`).

Notice that to set the title for a legend with labs, you can set the parameters of the same names as the corresponding aesthetics. While our plot is still far from perfect—some of the points are hard to see because of how many there are—it’s now good enough to provide some insight into the relationship between number of breeding pairs and nests.

18.2.6 Saving Plots

You can use the ggsave function to save a plot you’ve assigned to a variable or the most recent plot you created (with no argument to ggsave):

ggsave("myplot.png")

The file format is selected automatically based on the extension. Common formats include PNG, TIFF, SVG, and PDF.

PNG and SVG are good choices for sharing visualizations online, while TIFF and PDF are good choices for print. Many journals require that visualizations be in TIFF format.

Note: R Plot Devices

You can also save a plot with one of R’s “plot device” functions. The steps are:

Call a plot device function: png, jpeg, pdf, bmp, tiff, or svg.
Run your code to make the plot.
Call dev.off to indicate that you’re done plotting.

This strategy works with any of R’s graphics systems (not just ggplot2).

Here’s an example:

# Run these lines in the console, not the notebook!
jpeg("myplot.jpeg")
ggplot(terns) +
  aes(
    x = bp_min, y = total_nests,
    color = event, shape = event
  ) +
  geom_point() +
  labs(
    x = "Minimum Reported Breeding Pairs",
    y = "Total Nests",
    color = "Climate Event", shape = "Climate Event",
    title = "California Least Terns: Breeding Pairs vs. Nests"
  )
dev.off()

18.2.7 Example: Bar Plot

Suppose we want to visualize how many fledglings there are each year, further broken down by region. A bar plot is one appropriate way to represent this visually.

The geometry for a bar plot is geom_bar. Since bar plots are mainly used to display frequencies, by default the geom_bar function counts the number of observations in each category on the x-axis and displays these counts on the y-axis. You can make geom_bar display values from a column on the y-axis by setting the weight aesthetic:

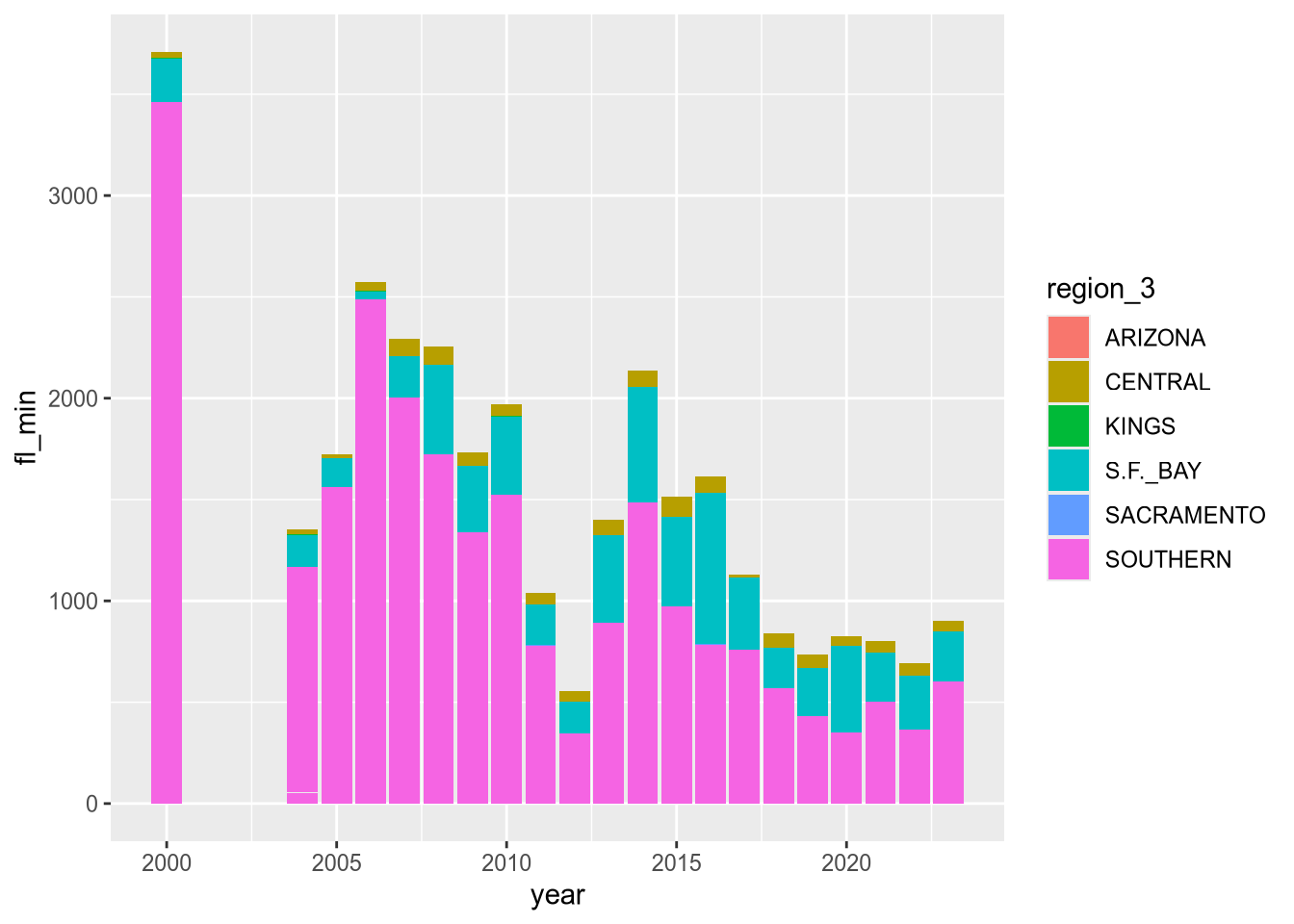

ggplot(terns) +
  aes(x = year, weight = fl_min, fill = region_3) +
  geom_bar()

Note: Setting the Statistics Layer

Every geometry layer has a corresponding statistics layer, which transforms feature values into quantities to plot. For many geometries, the default statistics layer is the only one that makes sense.

Bar plots are an exception. The default statistics layer is stat_count, which counts observations. If you already have counts (or just want to display some quantities as bars), you need stat_identity (or the weight aesthetic described above). Here’s one way to change the statistics layer:

ggplot(terns) +
  aes(x = year, y = fl_min, fill = region_3) +
  geom_bar(stat = "identity")

Warning: Removed 12 rows containing missing values or values outside the scale range
(`geom_bar()`).

This produces the same plot as setting weight and using the default statistics layer stat_count.

The plot reveals that there are a few extraneous categories in the region_3 column: ARIZONA, KINGS, and SACRAMENTO. These might or might not be erroneous—and it would be good to investigate—but they don’t add anything to this plot, so let’s exclude them.

Let’s also change the color map, the palette of colors used for the categories. These are both properties of the scale layer for the fill aesthetic, so we’ll use a scale_fill_ function. In particular, we’ll use the “viridis” color map, and since the fill color corresponds to categorical (discrete) data, we’ll use scale_fill_viridis_d. We’ll also add labels:

terms_to_keep = c("S.F._BAY", "CENTRAL", "SOUTHERN")
terns_filtered = terns[terns$region_3 %in% terms_to_keep, ]

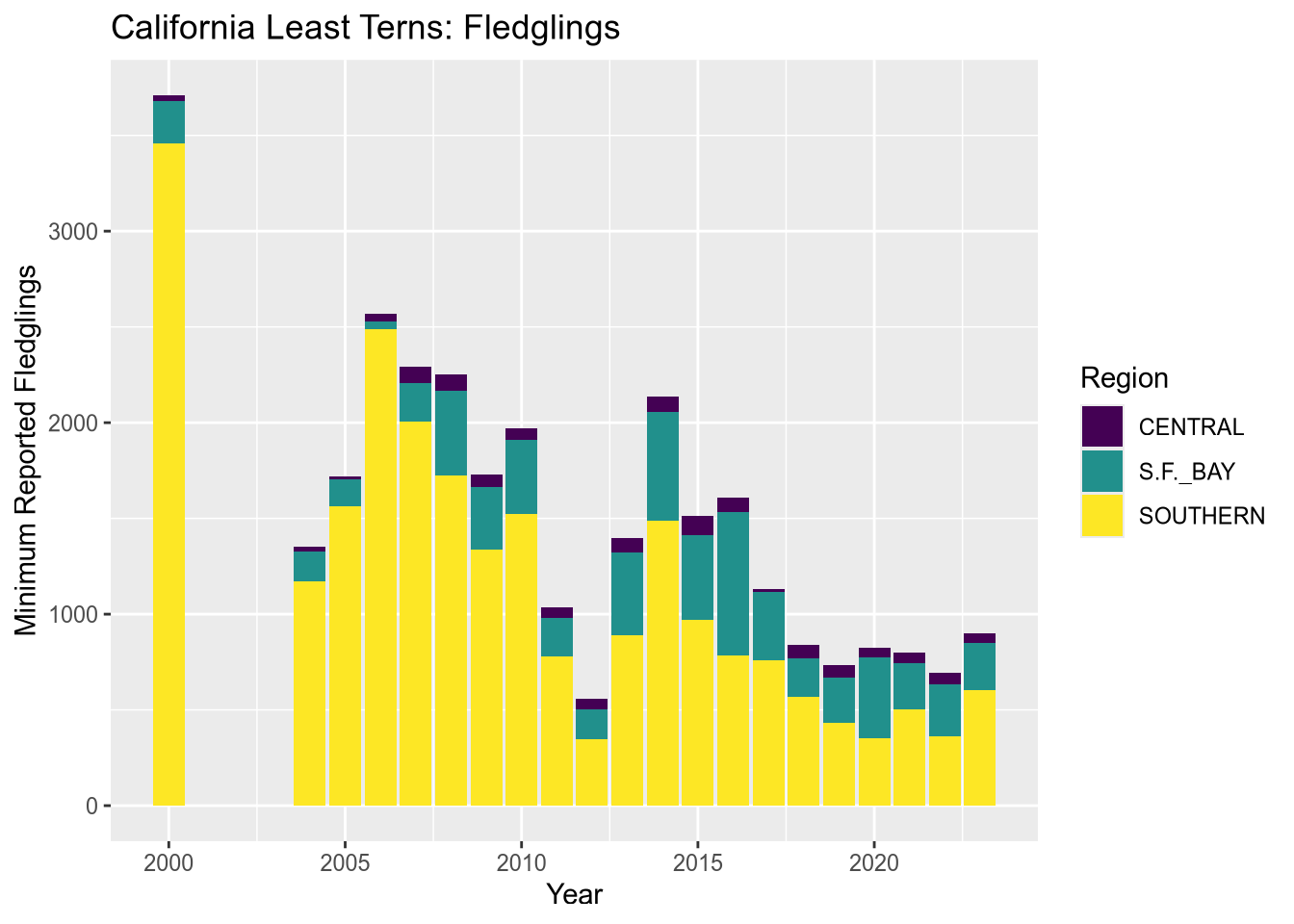

ggplot(terns_filtered) +
  aes(x = year, weight = fl_min, fill = region_3) +
  geom_bar() +
  scale_fill_viridis_d() +
  labs(
    title = "California Least Terns: Fledglings",
    x = "Year",
    y = "Minimum Reported Fledglings",
    fill = "Region"
  )

You can read more about the viridis color map in ggplot2’s documentation for this function. The plot reveals that the data set is missing 2001-2003 and that overall, fledgling counts seem to be declining in recent years.

Tip

The setting position = "dodge" instructs geom_bar to put the bars side-by-side rather than stacking them.

18.2.8 Visualization Design

Designing high-quality visualizations goes beyond just mastering which R functions to call. You also need to think carefully about what kind of data you have and what message you want to convey. This section provides a few guidelines.

The first step in data visualization is choosing an appropriate kind of plot. Here are some suggestions (not rules):

Feature 1	Feature 2	Plot
categorical		bar, dot
categorical	categorical	bar, dot, mosaic
numerical		box, density, histogram
numerical	categorical	box, density, ridge
numerical	numerical	line, scatter, smooth scatter

If you want to add a:

3rd numerical feature, use it to change point/line sizes.
3rd categorical feature, use it to change point/line styles.
4th categorical feature, use side-by-side plots.

Once you’ve selected a plot, here are some rules you should almost always follow:

Always add a title and axis labels. These should be in plain English, not variable names!
Specify units after the axis label if the axis has units. For instance, “Height (ft)”.
Don’t forget that many people are colorblind! Also, plots are often printed in black and white. Use point and line styles to distinguish groups; color is optional.
Add a legend whenever you’ve used more than one point or line style.
Always write a few sentences explaining what the plot reveals. Don’t describe the plot, because the reader can just look at it. Instead, explain what they can learn from the plot and point out important details that are easily overlooked.
Sometimes points get plotted on top of each other. This is called overplotting. Plots with a lot of overplotting can be hard to read and can even misrepresent the data by hiding how many points are present. Use a two-dimensional density plot or jitter the points to deal with overplotting.
For side-by-side plots, use the same axis scales for both plots so that comparing them is not deceptive.
